Service Trolley

Service Trolley

18/0 stainless steel, Ø 25 mm tubular frame, 0.8 mm thick shelves, with 76 x 44 cm surfaces, outer dimension 83 x 51 cm, with sound absorbing base, four Ø 125 mm swivel wheels, 2 with brakes, 40 kg maximum load per shelf, assembly using stainless steel M12 bolts
18/0 Stainless Steelinstruction manual for self assembly
Part No.Outer Length Outer Width Overall Height

with 2 shelves

7004/00283 cm51 cm94 cm

with 3 shelves

7004/00383 cm51 cm94 cm

with 5 shelves

7004/00583 cm51 cm154 cm
(This size pallet delivery only.)
Supplied flat packed.

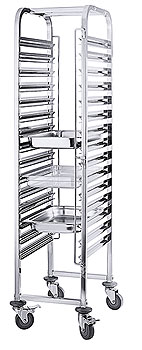

GN 1/1 Racking Trolley

GN 1/1 Racking Trolley

stainless steel, matches EN 18867-2, takes GN trays and containers e.g. 15 pcs. GN 1/1 65 mm or 10 pcs. 100 mm deep, 4 swivel wheels Ø 125 mm, all equipped with brakes
Stainless Steelinstruction manual GNshipped on palette onlyfor self assembly
Part No.Depth Width Height GN
8100/17555 cm37.5 cm173.5 cm1/1
Supplied flat packed. Pallet delivery only.

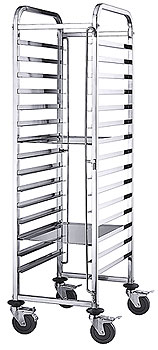

Pastry Racking Trolley

Pastry Racking Trolley

stainless steel, matches EN 18867-2, takes up to 15 pcs. of 60 x 40 cm trays, 4 swivel wheels Ø 125 mm, all equipped with brakes
Stainless SteelGNshipped on palette onlyfor self assembly
Part No.Depth Width Height
8102/01562 cm47 cm173.5 cm
Supplied flat packed. Pallet delivery only.

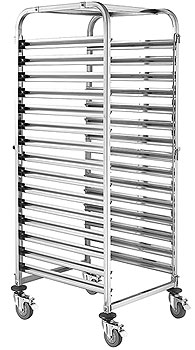

GN 2/1 Racking Trolley

GN 2/1 Racking Trolley

stainless steel, matches EN 18867-2, takes GN trays and containers e.g. 15 pcs. GN 2/1 65 mm or 10 pcs. 100 mm deep, 4 swivel wheels Ø 125 mm, all equipped with brakes
Stainless SteelNEWGNshipped on palette onlyfor self assembly
Part No.Depth Width Height GN
8103/17059 cm70 cm173.5 cm2/1
Supplied flat packed. Pallet delivery only.
Service Trolley, small

Service Trolley, small

18/0 stainless steel, 25 mm Ø tubular frame, 0.8 mm thick shelves, with 63,5 x 34 cm surfaces, outer dimension 69,4 x 39,2 cm, with sound absorbing base, four 125 mm Ø swivel wheels, 2 with brakes, 35 kg maximum load per shelf, assembly using stainless steel M12 bolts
18/0 Stainless Steelinstruction manual for self assembly
Part No.Outer Length Outer Width Height
8109/00371 cm41 cm85.5 cm
Supplied flat packed.

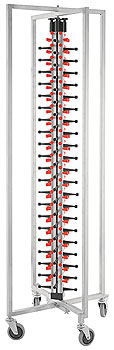

Mobile Plate Rack

Mobile Plate Rack

for a maximum of 84 plates, adjustable for plate thickness, from four sides accessable, stainless steel frame, anodised aluminium guide, rubber coated supports, 100 mm solid rubber wheels, two with brakes

The plate trolley is used for the temporary storage or clearing of porcellain plates. The plate rack holds 21 plates in 4 vertical rows, so has space for a total of 84 plates. The plate storage system is designed to save space and time with an adjustable support arm system so that plates of different heights can be clamped in. The support arms are 8.5 cm long and have a non-slip rubber coating. The trolley can be locked on two of the four castors.
Stainless SteelAluminiumPolyethyleneNEWshipped on palette onlyfor self assembly
Part No.Length Width Height Number of slots
8133/08465 cm60 cm190 cm84
8133/90710 replacement caps, black
8133/90910 replacement caps, red
Pallet delivery only.
